Consolidated, one of the first names in overpressure protection, has spent more than 140 years manufacturing and engineering pressure relief valves and providing technical solutions for some of the most challenging overpressure protection applications.

Consolidated Type 2900 Pilot Operated Safety Relief Valve

Consolidated Type 2900 Pilot Operated Safety Relief Valve

This unique and patented design offers the ultimate API 526 Direct-Spring to Pilot-Operated PRV upgrade opportunity by allowing the end user to select either Remote Sense or Integral Sense (depending…

Type 3500 Electromatic Ball Valve

Type 3500 Electromatic Ball Valve

The Consolidated Series 3500 Electromatic Ball Valve (EBV) is designed to provide automatic or manual overpressure protection for steam boilers, and can also be used to assist start-up and shut-down…

Type 2700 Steam Safety Valve

Type 2700 Steam Safety Valve

ASME Section I and VIII approved, the Consolidated Type 2700 steam safety valve is configured to meet the specific requirements of the co-generation and waste-to-energy segments. View the Series Catalog

Type 1811 Steam Safety Valve

Type 1811 Steam Safety Valve

The Consolidated Type 1811 is a cost effective, high capacity flanged steel safety valve that offers seat tightness and high performance making it a solution well-suited for steam service applications….

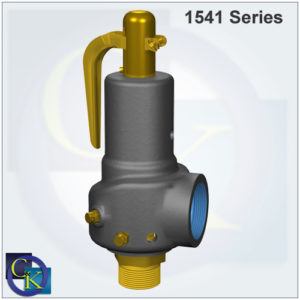

Type 1541/1543 Steam Safety Valve

Type 1541/1543 Steam Safety Valve

Suitable for steam and other compressible fluid applications, the Consolidated Type 1541 and 1543 safety valves are ASME Section I and VIII approved. They are most commonly used in pharmaceutical,…

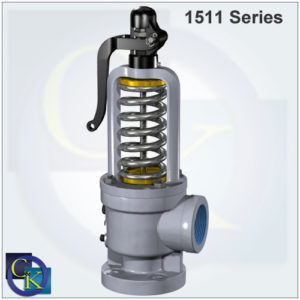

Type 1511 Steam Safety Valve

Type 1511 Steam Safety Valve

The Consolidated Type 1511 safety valves are designed for low pressure steam heating boilers, steam generators and air applications. This valve is ASME Section I and VIII approved. View the…

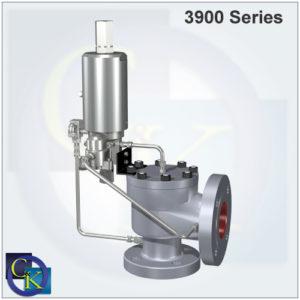

3900 Pilot-Operated Safety Relief Valve

3900 Pilot-Operated Safety Relief Valve

The Type 3900 modular pilot-operated safety relief valve (MPV) features a separate, non-flowing pilot sub-assembly design making it well-suitable for use with both compressible and incompressible fluids. Optional pilot valve…

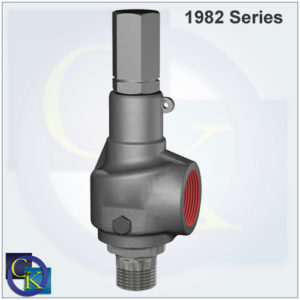

1982 Conventional Process Safety Relief Valve

1982 Conventional Process Safety Relief Valve

The Consolidated Type 1982 conventional process safety relief valve provides seat tightness and blowdown performance for vapor, liquid and steam applications. It is well-suited for applications requiring high relief capacity…

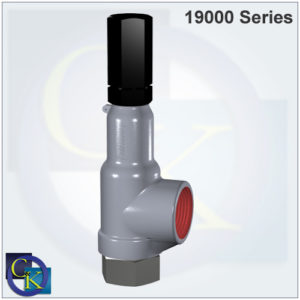

19000 Series Process Safety Relief Valve

19000 Series Process Safety Relief Valve

The Consolidated 19000 Series valve provides quality performance in seat tightness, capacity, and blowdown on most media. It surpasses ASME code requirements and is CE compliant to European PED specifications…

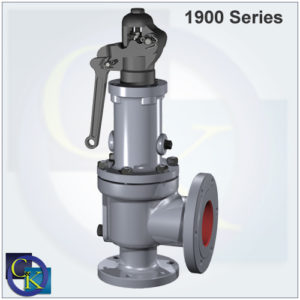

1900 Safety Relief Valve

1900 Safety Relief Valve

The first valve of its size capable of handling liquid and gas interchangeably without adjustments while remaining stable, the Type 1900 safety relief valve offers an innovative solution for multi-phase…

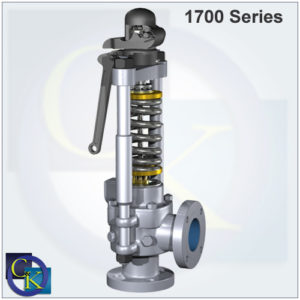

1700 Maxiflow Safety Valve

1700 Maxiflow Safety Valve

Consolidated Maxiflow high pressure safety valves are premium products that are installed on many power generating stations worldwide to help protect boilers from overpressure conditions. With a proven design, the…

Chalmers & Kubeck Consolidated Green Tag Service Centers provide prompt delivery from one of the largest pressure relief valve inventories anywhere.  We carry a combined total of approximately $14 Million in new Consolidated Relief Valves and Original Equipment Manufacturer (OEM) Replacement Parts in our C&K family of companies and have an additional $50 Million available from our Green Tag network associates.

Our Sales Engineers are happy to help you choose the correct relief valve for your critical application.  Learn more about the Consolidated valve catalog and how C&K can help your facility stay compliant and operate safely.  New valve sales are restricted to certain territories – we do not export or sell to exporters.

Boiler Safety Valves – ASME Section I (“V”)

C&K is pleased to provide our customers with an extensive selection of Consolidated Pressure Safety Valves in compliance with ASME Section I Code (Fired Pressure Vessel) for Boiler Applications, including the Steam Drum, Superheater, Reheaters, Economizer, and applications that benefit from Power-Actuated Relief Valves:

  • Type 1700 Maxiflow Safety Valve: The Consolidated Type 1700 Maxiflow high-pressure safety valve is a premium product that is installed on most power generating stations worldwide to help protect boilers from overpressure conditions.  The unique side rod design allows for thermal expansion without affecting the spring.  Typical applications for Fired Boilers include Steam Drum, Superheater Main Steam Line, Cold Reheater Line, and Hot Reheater Line.  This safety valve is also approved for ASME Section VIII applications.
  • Type 2700 Safety Valve: The Consolidated Type 2700 safety valve is configured to meet the specific requirements of the cogeneration and waste-to-energy markets.  Typical applications for Fired Boilers include Steam Drum, Superheater Main Steam Line, Cold Reheater Line, and Hot Reheater Line.  This safety valve is also approved for ASME Section VIII applications.
  • Type 1811 Safety Valve: The Consolidated Type 1811 safety valve is a cost-effective, high-capacity, flanged-steel safety valve for steam service.  Typical applications for Fired Boilers include Steam Drum, Superheater Main Steam Line, Cold Reheater Line, and Hot Reheater Line.  This safety valve is also approved for ASME Section VIII applications.
  • Type 1511 Safety Valve: The Consolidated Type 1511 safety valve has brass trim and is configured for low pressure steam-heating boilers and steam generators as well as air service applications.  Typical applications for Fired Boilers include the Steam Drum.  This safety valve is also approved for ASME Section VIII applications.
  • Type 1541/1543 Safety Valves: The Consolidated Type 1541 and Type 1543 Safety Valves have a brass base and trim are appropriate for steam and compressible fluid applications.  Typical applications for Fired Boilers include the Steam Drum.  These safety valves are also approved for ASME Section VIII applications and are commonly used in pharmaceutical and process plants.  Compression media is limited to non-toxic, non-flammable, and non-corrosive service.
  • Type 1900/P Safety Valve: The Consolidated Type 1900/P Safety Valve is configured for ASME Section I Economizer and Organic Fluid applications.
  • Type 2900-40 Pilot-Operated Safety Valve: The Consolidated type 2900-40 pilot operated safety relief valve offers superior performance while meeting the stringent requirements for boiler applications.  This product operates close to the set pressure and is especially suited for Economizer applications as it offers maximum seat tightness and a shorter blowdown to minimize steam loss.  Other Fired Boiler applications include Steam Drum, Superheater Main Steam Line, Cold Reheater Line, and Hot Reheater Line.
  • Type 3500 Electromatic Ball Valve: The Consolidated Type 3500-5 Series Electromatic Ball Valve offers manual or automatic overpressure protection for steam boiler systems and can be used to assist start-up and shut-down venting.  The new enhanced design includes a superior coating and manufacturing process that enhances leak free performance, improving reliability and increasing valve service life.

Off-Boiler Safety Relief Valves – ASME Section VIII (“UV”)

C&K is pleased to provide our customers with an extensive selection of Consolidated Pressure Relief Valves in compliance with ASME Section VIII Code (Unfired Pressure Vessel) for Off Boiler Applications, including Tube-side Feedwater Heaters, Shell-side Feedwater Heaters, Deaerators, Soot Blowers, Reducing Stations, and Extraction Steam:

  • Type 1900 Safety Relief Valve: The Consolidated Type 1900 safety relief valve is highly adaptable and can meet numerous application requirements.  Typical Unfired Pressure Vessel Applications include L.P. Feedwater Heaters, Deaerators, H.P. Feedwater Heaters – Shell Side, Economizer, Evaporator, Flash Tank, Reducing Valve, Soot Blower, and Turbine Gland Seal.  This safety relief valve is also approved for ASME Section III applications and can be configured as:
    • 1900 Conventional – Eductor Tube Advantage minimized bonnet cavity pressure for predictable performance.
    • 1900-30 Balanced Bellows – isolates the bonnet chamber from superimposed variable back pressure (necessary if >10% of set pressure or cold differential set pressure), process media that is a slurry or highly viscous, or process media corrosive to the valve’s upper works.
    • 1900-35 Balanced Bellows with Auxiliary Balancing Piston – the advantages of a bellows design with an auxiliary balancing piston to provide redundant back pressure balancing in the event of a bellows failure.
    • 1900-HA Special materials for Hydrofluoric (HF) Acid service
    • 1900N NACE – reference 1900 SRV Tech-Spec
    • 1900DA Soft Seat O-ring for leak free operation at 95% of set pressure with a metal back up seat for critical fire-relief applications
    • 1900LA Liquid Trim with Metallic Seats
    • 1900DA-LA Liquid Trim with Soft Seats
      • 1900TD Thermodisc for Steam and Organic Heat Transfer Media
      • 1900-DM Single Trim for both Liquid and Gas or Multi-Phase Applications.  This is the first and only dual certified spring-operated relief valve for use in vapor/gas flow and liquid flow where certification is achieved without making any adjustment or modifications to the relief device. The 1900-DM safety valve is ideal for any two-phase liquid and gas application or when there is flashing or multiple relief case scenarios.
      • 1900-DM-CD Cryodisc for Cryogenic Applications
      • Type 19000 Safety Relief Valve: The Consolidated Type 19000 safety relief valve is available with threaded connections and offers superior capacity and blowdown performance on many media types.  Typical Unfired Pressure Vessel Applications include Hydrogen Cooler, Oil Cooler, L.P. Feedwater Heaters, H.P. Feedwater Heaters – Tube Side, Make up Water Storage, Chemical Feedwater Treatment, and Evaporator.  When configured as 19000-MS (Standard Design), the metal-to-metal seat construction meets API 527 seat tightness performance.  When configured as 19000-DA, the addition of an O-Ring soft seat offers bubble tight seals up to 97% of set pressure when set at 101 PSIG or above.  This safety relief valve is also approved for ASME Section III applications.
  • Type 1982 Safety Relief Valve:  The Consolidated Type 1982 Safety Relief Valve has threaded connections and is a preferred choice for OEMs and skid manufactures requiring high-relief capacity from a small valve.  The Type 1982 offers superior seat tightness and blowdown performance for most media applications.
  • Type 2900 Pilot Operated Safety Relief Valve:  The Consolidated Type 2900 Pilot Operated Safety Relief (POSRV) has a patented design that combines the strengths of two products into one – the Type 1900 Safety Relief Valve and the Type 3900 Pilot Operated Safety Relief Valve.  This full nozzle valve is the only Integrally Sensed Pilot Valve that is a direct replacement fit (both inlet and outlet connections) for API 526 Spring Operated Relief Valves.  The 2900 Triple Media TM POSRV is also the industry’s first and only multi-media certified full-nozzle POSRV.  If inlet line loss is an issue (>3%), this valve can also be Remote Sensed.  Typical Unfired Pressure Vessel Applications include H.P. Feedwater Heaters – Shell Side, Economizer, Evaporator, Flash Tank, Reducing Valve, Soot Blower, and Turbine Gland Seal.  This valve is available with a modulating or pop-action pilot.
  • Type 3900 Pilot Operated Safety Relief Valve: The Type 3900 Pilot Operated Safety Relief Valve (POSRV) is a semi-nozzle non-flowing design available in a modulating or pop-action pilot.  Typical Unfired Pressure Vessel Applications include Deaerators, Evaporator, and Turbine Gland Seal.  The Type 3900 POSRV is suitable for overpressure protection of pressurized systems and vessels in the chemical, petrochemical, paper mills, as well as oil and gas production and transmission industries.
  • Type 4900 Pilot Operated Safety Relief Valve:  The Consolidated Type 4900 Pilot Operated Safety Relief Valve (POSRV) is a tubeless valve for oil and gas production in the offshore industry.
  • Type 13900 Pilot Operated Safety Relief Valve:  The Consolidated Type 13900 Pilot Operated Safety Relief Valve (POSRV) is configured for high-capacity steam overpressure protection for moisture separator reheater systems.  Typical Unfired Pressure Vessel Applications include Turbine Bypass.

Non-Code Relief Valves

  • Type 2478 Relief Valve:  The Consolidated Type 2478 relief valve has threaded connections with a cast bronze bonnet, brass base and trim, and PTFE soft seats.  This valve features an enclosed design for non-corrosive, thermal relief, and liquid service applications.
