Jerguson Tri-Mag Switch

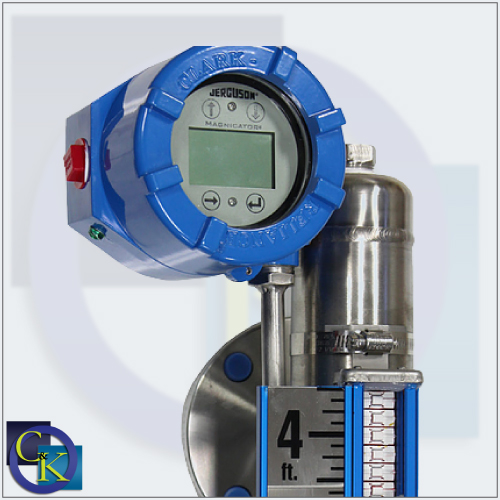

Jerguson Tri-Mag Switch MTII4300

Jerguson Tri-Mag Switch

Jerguson’s Tri-Magnet Level Switches deliver failure-free performance. The innovative use of repelling magnetic fields eliminates springs and other mechanical elements that are prone to failure in high temperatures, extreme vibration, or simply fatigue over time.

The switch mechanism is based on a unique three-dimensional magnet design where the snap action is accomplished by the utilization of magnetic repulsion and attraction. The primary magnet mounted on the float rod causes the secondary magnet to rotate as it passes up and down. The tertiary switch magnet is repelled by the secondary and snaps to the opposite side. This causes the cradle to pivot, moving the push rods, which operate the switch contacts. The result is positive snap action interlock switching…no springs…no spring problems!

Features And Benefits

  • Tri-Magnet Switching for Unparalleled Reliability
  • Vibration Resistant
  • Sealed or Flanged Cage
  • 316 Stainless Steel Trim
  • ASME B31.1 & B31.3 Design

Common Applications
