Butterfly Control Valves

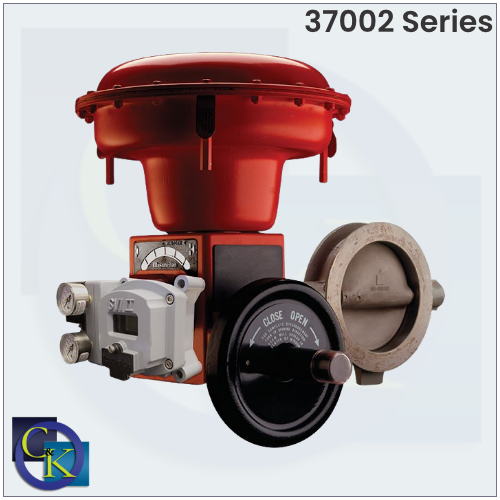

The Masoneilan conventional butterfly valves combine the tight shut-off characteristics of an elastomeric lined valve with moderate throttling control accuracy. They include resilient seat and high capacity functionality for economical control in low pressure throttling applications where tight shut-off is required. Available in both lined and unlined configurations, they meet various general process control application requirements. The standard butterfly valve design is the 37002 Series MiniTork II supplied with the Masoneilan Model 33 spring-diaphragm actuator.

Features And Benefits

  • Low-torque vane design reduces required actuator size resulting in a smaller, lighter valve package for reduced installation costs
  • Simple construction with a field-replaceable reinforced liner enables simple maintenance to help reduce downtime and life-cycle cost
  • Smaller, more sensitive actuators improve throttling responsiveness for tighter control and less process variability

Common Applications

Low-torque vane design reduces required actuator size resulting in a smaller, lighter valve package for reduced installation costs

Simple construction with a field-replaceable reinforced liner enables simple maintenance to help reduce downtime and life-cycle cost

Smaller, more sensitive actuators improve throttling responsiveness for tighter control and less process variability
